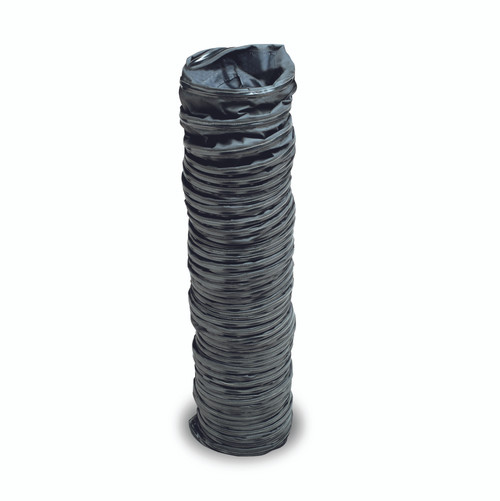

25 of 20" Statically Conductive Ducting
Designed for maximum air handling capabilities in hazardous locations
Allegro also offers 4 different ducting diameters, 8, 12, 16 and 20 in 15 and 25 lengths for static conductive environments. This lightweight and retractable duct is designed for maximum air handling capabilities with dual direction flow and low friction loss, while providing a safe positive means of discharging static build-up. Single ply, designed with vinyl and polyester materials and a neoprene coating, create a temperature resistance up to 250° F. This ducting is integrated with extended solid grounding wire at each end. It meets ASTM Specs and UL-94-VO requirements. It is rated to 1000,000 OHMS or less per square inch.
Features:
Vinyl and polyester anti-static materials
Single ply
Neoprene-coated
-65° F to 250° F (-53° C to 121° C) temperature range
Retractable, Non-collapsible design
Class 1 hard drawn spring steel wire helix
Meets ASTM 227 specs
Black color with black weather-strip
Meets flame retardant requirements of UL94V-0
Various diameter and length options available
Integrated with extended solid grounding wire at each end
Benefits:
Dual direction flow with minimum friction loss.
Designed for maximum air handling capabilities in hazardous locations
Tech Tips and Warnings:
Pair with a compatible EX Allegro blower and/or storage option
Applications:
Construction
Industrial
Manufacturing
Confined Space
