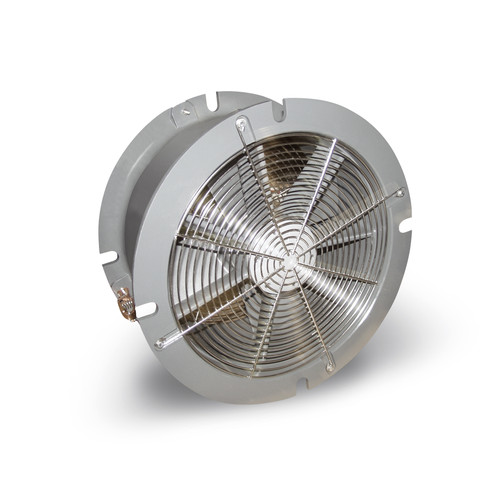

24" Jet Fan (11 3/4" x 32 3/4" diameter)
Heavy-duty fan that meets standard API tank openings
This heavy-duty aluminum fan can be used as a blower or exhaust by simply reverse mounting. Compressed air is pushed through a nozzle at the end of each blade creating the fan to propel at speeds up to 10,500 CFM (20" model) or 16,000 CFM (24" model) at 100 psig quickly and efficiently. Heavy-duty ball bearings are permanently lubricated and sealed for the life of the fan. Added features include a 3/4" side-mounted inlet connector (20" model) or a 1" side-mounted inlet connector (24" model), a spark-resistant fan, and recessed handles for easy portability or it can be rolled.
Features:
Heavy duty aluminum fan and fan housing
Available in two sizes
Spark-resistant
Heavy duty ball bearing
Stainless steel fan shaft eliminates internal rust
10,500 CFM (17,840 m3/hr) for the 20 (50.8 cm) model, and 16,000 CFM (27,184 m3/hr) for the 24 (60.9 cm) model at 100 psig (6.9 Bar)
The units flange is designed to fit standard API tank openings
OSHA standard safety screens
Made in USA
Benefits:
These units can be used as blowers or exhausters, by simply reverse mounting
These blowers are easily transported from one place to another by using its recessed carry handles, or it may be rolled
Heavy duty ball bearings are permanently lubricated and sealed for the life of the product
Applications:
Shipyard
Industrial
Manufacturing
Utilities
