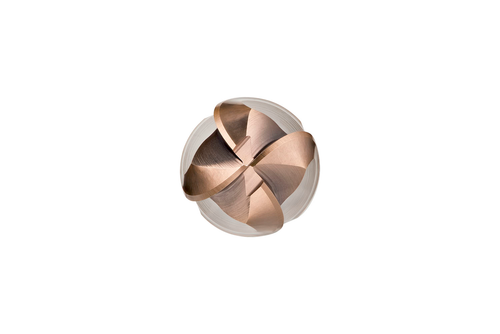

S5356.0-Ball-Nosed End Mill

Dormer

(No reviews yet) Write a Review

Write a Review

Close ×

Dormer

S5356.0-Ball-Nosed End Mill

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name Required

Email Required

Review Subject Required

Comments Required

SKU:

DOP-6706569

UPC:

7320760681183

Product measurement standard:

Metric

Cutting diameter - millimeter (DC):

6

Cutting diameter - inch (DC):

0.2362

Depth of cut maximum - millimeter (APMX):

10

Connection diameter - millimeter (DCON MS):

6

Overall length - millimeter (OAL):

75

Usable Length - millimeter (LU):

40

Neck diameter - millimeter (DN):

5.5

Corner radius - millimeter (RE):

3

Peripheral effective cutting edge count (ZEFP):

4

Depth of cut maximum - inch (APMX):

0.3937

Connection diameter - inch (DCON MS):

0.2362

Overall length - inch (OAL):

2.9528

Radial rake angle (GAMF):

-10

Neck diameter - inch (DN):

0.2165

Corner radius - inch (RE):

0.1181

Material code (BMC):

HM

Basic standard group (BSG):

DORMER

Coating:

TiSiN

Shank:

Cylindrical shank DIN 6535 HA

Flute count (NOF):

4

Flute helix angle (FHA):

30

Cutting diameter tolerance class (TCDC):

h9

Cut length:

Extra short

Mill Profile:

N - General Purpose Cutter Type for Low to High Resistance Materials

Country of origin:

Malaysia

Gross weight - grams:

32.8

Box width millimeter:

15

Box length millimeter:

115

Box height millimeter:

14

Box width inches:

0.591

Box length inches:

4.528

Box height inches:

0.551

Connection diameter tolerance machine side (TCDCONMS):

h6

Product name ISO:

S5356.0

Ordering code ANSI:

S5356.0

EAN number:

7320760681183

EDP number:

46706569

Package Quantity:

1
