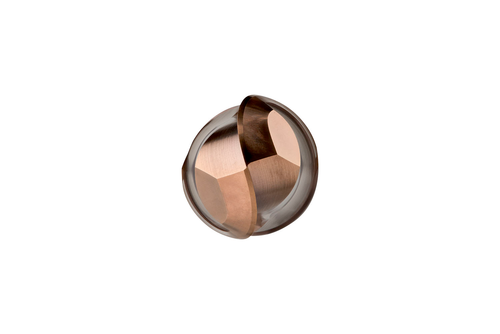

S2293.0XD3-Ball-Nosed End Mill

Dormer

(No reviews yet) Write a Review

Write a Review

Close ×

Dormer

S2293.0XD3-Ball-Nosed End Mill

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name Required

Email Required

Review Subject Required

Comments Required

SKU:

DOP-6706518

UPC:

7320760680674

Product measurement standard:

Metric

Cutting diameter - millimeter (DC):

3

Cutting diameter - inch (DC):

0.1181

Depth of cut maximum - millimeter (APMX):

5

Connection diameter - millimeter (DCON MS):

3

Overall length - millimeter (OAL):

50

Usable Length - millimeter (LU):

14

Neck diameter - millimeter (DN):

2.8

Corner radius - millimeter (RE):

1.5

Peripheral effective cutting edge count (ZEFP):

2

Depth of cut maximum - inch (APMX):

0.1969

Connection diameter - inch (DCON MS):

0.1181

Overall length - inch (OAL):

1.9685

Radial rake angle (GAMF):

3

Neck diameter - inch (DN):

0.1102

Corner radius - inch (RE):

0.0591

Material code (BMC):

HM

Basic standard group (BSG):

DORMER

Coating:

TiSiN

Shank:

Cylindrical shank DIN 6535 HA

Flute count (NOF):

2

Flute helix angle (FHA):

30

Cutting diameter tolerance class (TCDC):

h9

Cut length:

Extra short

Mill Profile:

N - General Purpose Cutter Type for Low to High Resistance Materials

Country of origin:

Malaysia

Gross weight - grams:

6.9

Box width millimeter:

10

Box length millimeter:

92

Box height millimeter:

9

Box width inches:

0.394

Box length inches:

3.622

Box height inches:

0.354

Connection diameter tolerance machine side (TCDCONMS):

h6

Product name ISO:

S2293.0XD3

Ordering code ANSI:

S2293.0XD3

EAN number:

7320760680674

EDP number:

46706518

Package Quantity:

1
