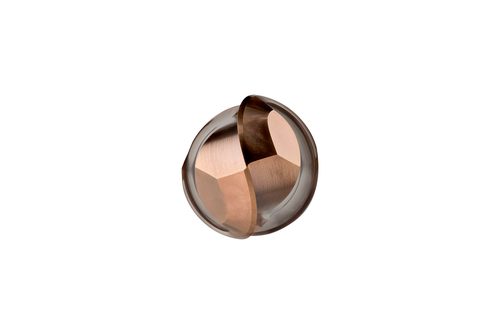

S22916.0-Ball-Nosed End Mill

Dormer

(No reviews yet) Write a Review

Write a Review

Close ×

Dormer

S22916.0-Ball-Nosed End Mill

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name Required

Email Required

Review Subject Required

Comments Required

SKU:

DOP-6706529

UPC:

7320760680780

Product measurement standard:

Metric

Cutting diameter - millimeter (DC):

16

Cutting diameter - inch (DC):

0.6299

Depth of cut maximum - millimeter (APMX):

32

Connection diameter - millimeter (DCON MS):

16

Overall length - millimeter (OAL):

90

Usable Length - millimeter (LU):

46

Neck diameter - millimeter (DN):

15

Corner radius - millimeter (RE):

8

Peripheral effective cutting edge count (ZEFP):

2

Depth of cut maximum - inch (APMX):

1.2598

Connection diameter - inch (DCON MS):

0.6299

Overall length - inch (OAL):

3.5433

Radial rake angle (GAMF):

3

Neck diameter - inch (DN):

0.5906

Corner radius - inch (RE):

0.315

Material code (BMC):

HM

Basic standard group (BSG):

DORMER

Coating:

TiSiN

Shank:

Cylindrical shank DIN 6535 HA

Flute count (NOF):

2

Flute helix angle (FHA):

30

Cutting diameter tolerance class (TCDC):

h9

Cut length:

Extra short

Mill Profile:

N - General Purpose Cutter Type for Low to High Resistance Materials

Country of origin:

Malaysia

Gross weight - grams:

211.3

Box width millimeter:

21

Box length millimeter:

98

Box height millimeter:

21

Box width inches:

0.827

Box length inches:

3.858

Box height inches:

0.827

Connection diameter tolerance machine side (TCDCONMS):

h6

Product name ISO:

S22916.0

Ordering code ANSI:

S22916.0

EAN number:

7320760680780

EDP number:

46706529

Package Quantity:

1
