TPUN 270616S:6640-Turning Insert - Positive

TPUN 270616S:6640-Turning Insert - Positive

Pramet

$14.07
(No reviews yet) Write a Review
SKU:
PRA-6751573
UPC:
3603602869395

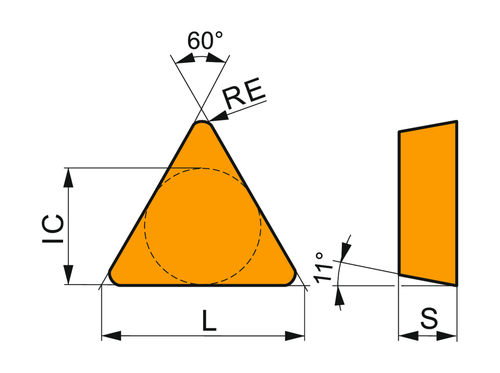

Product measurement standard:
Metric
Depth of cut maximum - millimeter (APMX):
7.8
Corner radius - millimeter (RE):
1.6
Cutting edge length - millimeter (L):
27.5
Inscribed circle diameter - millimeter (IC):
15.875
Insert thickness - millimeter (S):
6.35
Depth of cut maximum - inch (APMX):
0.307
Corner radius - inch (RE):
0.063
Insert Geometry:
Positive
Cutting edge length - inch (L):
1.083
Inscribed circle diameter - inch (IC):
0.625
Insert thickness - inch (S):
0.25
Insert shape code (SC):
T - triangular 60° included angle
InsertDesign:
TPUN
Coating:
6640
Chipbreaker manufacturer's designation (CBMD):
No chipbreaker
Country of origin:
Czech Republic
Gross weight - grams:
25.881
Box width millimeter:
56
Box length millimeter:
139
Box height millimeter:
14.5
Box width inches:
2.205
Box length inches:
5.472
Box height inches:
0.571
Product name ISO:
TPUN 270616S:6640
Ordering code ANSI:
TPU 544S:6640
EAN number:
3603602869395
EDP number:
6751573
Package Quantity:
10
Adding to cart… The item has been added

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 15.875", 6.35" thick, 1.6" nose radius, indexing accuracy according to ISO-tolerance class-U with rounded cutting edges with facet, in grade 6640, a MT-CVD coated WC-Co carbide, for medium to fine machining

Applications:

P - Steel and cast steel(steels with alloy content ? 10% and a hardness of < 45HRC) - Possible use

K - Cast Iron(castings of iron and carbon alloys with > 2% carbon content) - Primary use
