G15412.4-Countersink - 82°

G15412.4-Countersink - 82°

Dormer

$35.97
(No reviews yet) Write a Review
SKU:
DOP-5972795
UPC:
7320760149379
Product measurement standard:
Metric
Length chip flute - millimeter (LCF):
8.5
Connection diameter - millimeter (DCON MS):
8
Overall length - millimeter (OAL):
56
Cutting diameter step - millimeter:
2.8
Cutting diameter second cutting step - millimeters (DC_2):
12.4
Connection diameter - inch (DCON MS):
0.315
Overall length - inch (OAL):
2.2047
Material code (BMC):
HSS
Basic standard group (BSG):
DIN 335 C
Coating:
Bright
Shank:
Cylindrical shank
Application Angle:
Countersinking 82°
Flute count (NOF):
3
Point Angle (SIG):
82
Hand (Cutting direction):
Right
Country of origin:
France
Gross weight - grams:
31.4
Box width millimeter:
17.62
Box length millimeter:
86.93
Box height millimeter:
17.48
Box width inches:
0.694
Box length inches:
3.422
Box height inches:
0.688
Connection diameter tolerance machine side (TCDCONMS):
h9
Product name ISO:
G15412.4
Ordering code ANSI:
G15412.4
EAN number:
7320760149379
EDP number:
0149379
Package Quantity:
1
Adding to cart… The item has been added

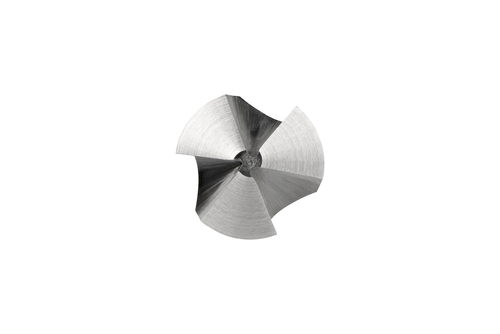

Countersink with 3-flutes, 82° chamfering angle, maximum diameter 12.40mm with an overall length of 56mm and a head length of 8.5mm and 8mm straight shank, according to DIN 335 C standard to produce a conical seat for US standard countersunk-head screws with a minium hole diameter of 2.80mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys

Applications:

P - Steel and cast steel(steels with alloy content ? 10% and a hardness of < 45HRC) - Primary use

M - Stainless steel(corrosion resistant steels with ? 11% chromium content) - Possible use

K - Cast Iron(castings of iron and carbon alloys with > 2% carbon content) - Possible use

N - Non-ferrous metals(metals including alloys without an appreciable amount of iron) - Primary use

For additional details please check the Manufacturer's site:

G15412.4

!
