E5313/16NO3-HSS Straight Flute Hand Tap, BSW, ISO Standard

E5313/16NO3-HSS Straight Flute Hand Tap, BSW, ISO Standard

Dormer

$10.38
(No reviews yet) Write a Review
SKU:
DOP-5977310
UPC:
7320760098684
Product measurement standard:
Inch

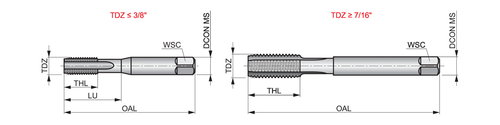

Connection diameter - millimeter (DCON MS):
5
Overall length - millimeter (OAL):
58
Usable Length - millimeter (LU):
20
Thread diameter size (TDZ):
3/16
Threading length - millimeter (THL):
11
Thread diameter - inch (TD):
0.1875
Thread diameter - millimeter (TD):
4.763
Threads per inch (TPI):
24
Premachined hole diameter - millimeter (PHD):
3.7
Connection diameter - inch (DCON MS):
0.1969
Overall length - inch (OAL):
2.2835
Usable Length - inch (LU):
0.7874
Clamping width - millimeter (WSC):
4
Threading length - inch (THL):
0.4331
Clamping width - inch (WSC):
0.1575
Premachined hole diameter - inch (PHD):
0.1457
Material code (BMC):
HSS
Basic standard group (BSG):
ISO 529
Coating:
Bright
Shank:
Cylindrical shank with Square
Usable length (ULDR):
1.5
Flute count (NOF):
3
Tap Application:
Through or Blind Hole
Thread form (THFT):
BSW - British standard Whitworth
Flute Geometry (FDC):
Straight Flute Geometry
Hand (Cutting direction):
Right
Country of origin:
Brazil
Gross weight - grams:
9.5
Box width millimeter:
5.32
Box length millimeter:
86.83
Box height millimeter:
5.32
Box width inches:
0.209
Box length inches:
3.419
Box height inches:
0.209
Product name ISO:
E5313/16NO3
Ordering code ANSI:
E5313/16NO3
EAN number:
7320760098684
EDP number:
0098684
Package Quantity:
1
Adding to cart… The item has been added

Straight flute hand tap NO3 with a 2-3xP plug lead, for British Standard Whitworth thread BSW 3/16" with 24 TPI and Medium class of fit, dimensions according to ISO 529 standard with 5.0mm shank and 4.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Applications:

P - Steel and cast steel(steels with alloy content ? 10% and a hardness of < 45HRC) - Primary use

K - Cast Iron(castings of iron and carbon alloys with > 2% carbon content) - Possible use

N - Non-ferrous metals(metals including alloys without an appreciable amount of iron) - Primary use

For additional details please check the Manufacturer's site:

E5313/16NO3

!
