E22912-28-UNF Machine Tap Straight Flute

E22912-28-UNF Machine Tap Straight Flute

Dormer

$35.43
(No reviews yet) Write a Review
SKU:
DOP-5976136
UPC:
7320760086308
Product measurement standard:
Inch

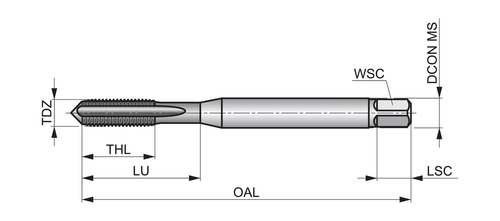

Connection diameter - millimeter (DCON MS):
6
Overall length - millimeter (OAL):
80
Usable Length - millimeter (LU):
30
Thread diameter size (TDZ):
12
Threading length - millimeter (THL):
15
Thread diameter - inch (TD):
0.216
Thread diameter - millimeter (TD):
5.486
Threads per inch (TPI):
28
Premachined hole diameter - millimeter (PHD):
4.7
Connection diameter - inch (DCON MS):
0.2362
Overall length - inch (OAL):
3.1496
Usable Length - inch (LU):
1.1811
Clamping Length - millimeter (LSC):
8
Clamping width - millimeter (WSC):
4.9
Threading length - inch (THL):
0.5906
Clamping Length - inch (LCS):
0.315
Clamping width - inch (WSC):
0.1929
Premachined hole diameter - inch (PHD):
0.185
Material code (BMC):
HSS-E-PM
Basic standard group (BSG):
DIN 371
Coating:
Bright
Shank:
Cylindrical shank with Square
Usable length (ULDR):
1.5
Flute count (NOF):
3
Tap Application:
Through or Blind Hole
Tap chamfer style (TCS):
C 2 - 3
Thread form (THFT):
UNF - Unified Fine
Flute Geometry (FDC):
Straight Flute Geometry
Hand (Cutting direction):
Right
Country of origin:
Brazil
Gross weight - grams:
16.2
Box width millimeter:
16.74
Box length millimeter:
88.76
Box height millimeter:
13.83
Box width inches:
0.659
Box length inches:
3.494
Box height inches:
0.544
Product name ISO:
E22912-28
Ordering code ANSI:
E22912-28
EAN number:
7320760086308
EDP number:
0086308
Package Quantity:
1
Adding to cart… The item has been added

Straight flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 12 with 28 TPI and 2B class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Applications:

P - Steel and cast steel(steels with alloy content ? 10% and a hardness of < 45HRC) - Primary use

K - Cast Iron(castings of iron and carbon alloys with > 2% carbon content) - Possible use

N - Non-ferrous metals(metals including alloys without an appreciable amount of iron) - Primary use

For additional details please check the Manufacturer's site:

E22912-28
