E006M16-M Machine Tap Spiral Point

E006M16-M Machine Tap Spiral Point

Dormer

$61.16
(No reviews yet) Write a Review
SKU:
DOP-5973878
UPC:
7320760580578
Product measurement standard:
Metric

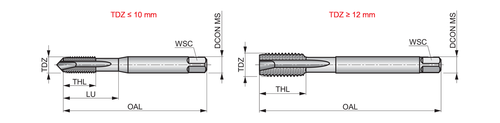

Connection diameter - millimeter (DCON MS):
12.19
Overall length - millimeter (OAL):
96.84
Thread diameter size (TDZ):
16
Thread pitch - inch (TP):
0.0787
Thread pitch - millimeter (TP):
2
Premachined hole diameter - millimeter (PHD):
14
Connection diameter - inch (DCON MS):
0.48
Overall length - fractional inch (OAL):
3.13/16
Overall length - inch (OAL):
3.8125
Threading length - inch (THL):
0.9843
Clamping width - inch (WSC):
0.36
Premachined hole diameter - imperial (PHD):
35/64
Premachined hole diameter - inch (PHD):
0.5512
Tolerance limit:
D7
Material code (BMC):
HSS-E-PM
Basic standard group (BSG):
ANSI
Coating:
Steam Tempered
Shank:
Cylindrical shank with Square
Usable length (ULDR):
2.5
Flute count (NOF):
3
Tap Application:
Through Hole
Tap chamfer style (TCS):
B 3.5 - 5
Thread form (THFT):
M - Metric coarse
Flute Geometry (FDC):
Spiral Point Geometry
Hand (Cutting direction):
Right
Country of origin:
Brazil
Gross weight - grams:
90.9
Box width millimeter:
22
Box length millimeter:
98
Box height millimeter:
22
Box width inches:
0.866
Box length inches:
3.858
Box height inches:
0.866
Product name ISO:
E006M16
Ordering code ANSI:
E006M16
EAN number:
7320760580578
EDP number:
0580578
Package Quantity:
1
Adding to cart… The item has been added

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.4800" shank and 0.3600" square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

Applications:

P - Steel and cast steel(steels with alloy content ? 10% and a hardness of < 45HRC) - Primary use

M - Stainless steel(corrosion resistant steels with ? 11% chromium content) - Possible use

K - Cast Iron(castings of iron and carbon alloys with > 2% carbon content) - Possible use

For additional details please check the Manufacturer's site:

E006M16
