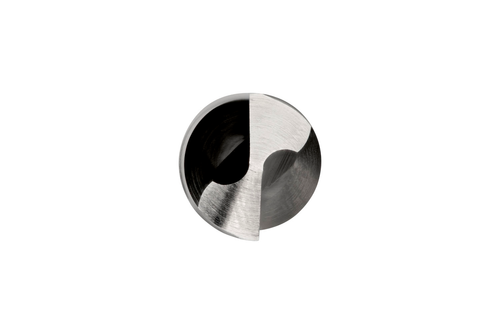

A9762.5X140-PFX Extra Length Drill

A9762.5X140-PFX Extra Length Drill

Dormer

$38.79
(No reviews yet) Write a Review
SKU:
DOP-5972642
UPC:
7320760148525
Product measurement standard:
Metric
Cutting diameter - millimeter (DC):
2.5
Cutting diameter - inch (DC):
0.0984
Length chip flute - millimeter (LCF):
95
Connection diameter - millimeter (DCON MS):
2.5
Overall length - millimeter (OAL):
140
Length chip flute - inch (LCF):
3.7402
Connection diameter - inch (DCON MS):
0.0984
Overall length - inch (OAL):
5.5118
Spiral form:
Quick Spiral
Material code (BMC):
HSS-E
Basic standard group (BSG):
DIN 1869 / 1
Coating:
Bright
Shank:
Cylindrical shank
Application Angle:
Drill point 130°
Usable length (ULDR):
15
Point Angle (SIG):
130
Cutting diameter tolerance class (TCDC):
h8
Hand (Cutting direction):
Right
Country of origin:
Brazil
Gross weight - grams:
11.3
Box width millimeter:
10
Box length millimeter:
180
Box height millimeter:
13
Box width inches:
0.394
Box length inches:
7.087
Box height inches:
0.512
Product name ISO:
A9762.5X140
Ordering code ANSI:
A9762.5X140
EAN number:
7320760148525
EDP number:
0148525
Package Quantity:
1
Adding to cart… The item has been added

Extra long length PFX drill with straight shank, diameter 2.5mm with an overall length of 140mm and flute length of 95mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

Applications:

P - Steel and cast steel(steels with alloy content ? 10% and a hardness of < 45HRC) - Primary use

M - Stainless steel(corrosion resistant steels with ? 11% chromium content) - Possible use

K - Cast Iron(castings of iron and carbon alloys with > 2% carbon content) - Possible use

N - Non-ferrous metals(metals including alloys without an appreciable amount of iron) - Possible use

S - High-temperature alloys(superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel) - Possible use

For additional details please check the Manufacturer's site:

A9762.5X140
