A1309/32-Taper Shank Drill

A1309/32-Taper Shank Drill

Dormer

$19.37
(No reviews yet) Write a Review
SKU:
DOP-5968832
UPC:
7320760026175
Product measurement standard:
Inch

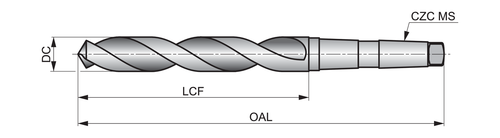

Cutting diameter - millimeter (DC):
7.14
Cutting diameter - inch (DC):
0.2813
Cutting diameter - fractional inch (DC):
9/32
Length chip flute - millimeter (LCF):
69
Overall length - millimeter (OAL):
150
Connection size code machine side (CZC MS):
MK 1
Length chip flute - inch (LCF):
2.7165
Overall length - inch (OAL):
5.9055
Spiral form:
Standard Spiral
Material code (BMC):
HSS
Basic standard group (BSG):
DIN 345
Coating:
Steam Tempered
Shank:
Morse Taper Shank
Application Angle:
Drill point 118°
Usable length (ULDR):
4
Point Angle (SIG):
118
Cutting diameter tolerance class (TCDC):
h8
Hand (Cutting direction):
Right
Country of origin:
Brazil
Gross weight - grams:
72.973
Box width millimeter:
17
Box length millimeter:
204
Box height millimeter:
17
Box width inches:
0.669
Box length inches:
8.031
Box height inches:
0.669
Product name ISO:
A1309/32
Ordering code ANSI:
A1309/32
EAN number:
7320760026175
EDP number:
0026175
Package Quantity:
1
Adding to cart… The item has been added

Jobber length drill with taper shank, diameter 0.2813" (9/32) with an overall length of 150mm and flute length of 69mm according to DIN 345 standard with 118° thinned conical point, HSS with steam tempered finish for 4xD drilling without pecking in steel

Applications:

P - Steel and cast steel(steels with alloy content ? 10% and a hardness of < 45HRC) - Primary use

M - Stainless steel(corrosion resistant steels with ? 11% chromium content) - Possible use

K - Cast Iron(castings of iron and carbon alloys with > 2% carbon content) - Primary use

N - Non-ferrous metals(metals including alloys without an appreciable amount of iron) - Possible use

S - High-temperature alloys(superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel) - Possible use

For additional details please check the Manufacturer's site:

A1309/32

!
