A1081.6-Jobber Drill Split Point

Dormer

$5.76
(No reviews yet) Write a Review
SKU:
DOP-5968184
UPC:
7320760007600
Product measurement standard:
Metric
Cutting diameter - millimeter (DC):
1.6
Cutting diameter - inch (DC):
0.063
Length chip flute - millimeter (LCF):
20
Connection diameter - millimeter (DCON MS):
1.6
Overall length - millimeter (OAL):
43
Length chip flute - inch (LCF):
0.7874
Connection diameter - inch (DCON MS):
0.063
Overall length - inch (OAL):
1.6929
Spiral form:
Quick Spiral
Material code (BMC):
HSS
Basic standard group (BSG):
DIN 338
Coating:
Steam Tempered
Shank:
Cylindrical shank
Application Angle:
Drill point 135°
Usable length (ULDR):
4
Point Angle (SIG):
135
Cutting diameter tolerance class (TCDC):
h8
Hand (Cutting direction):
Right
Country of origin:
Brazil
Gross weight - grams:
0.73
Box width millimeter:
10
Box length millimeter:
43.53
Box height millimeter:
10
Box width inches:
0.394
Box length inches:
1.714
Box height inches:
0.394
Product name ISO:
A1081.6
Ordering code ANSI:
A1081.6
EAN number:
7320760007600
EDP number:
0007600
Package Quantity:
10
Adding to cart… The item has been added

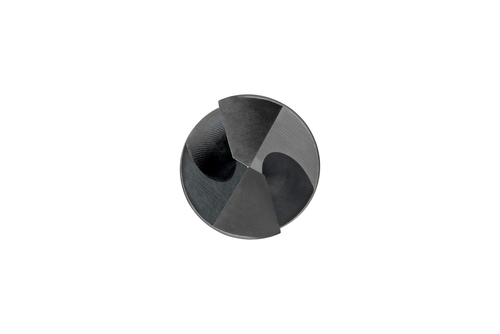

Jobber length drill with straight shank, diameter 1.6mm with an overall length of 43mm and flute length of 20mm according to DIN 338 standard with 135° split point, HSS with steam tempered finish and quick spiral for 4xD drilling without pecking in stainless steel

Applications:

P - Steel and cast steel(steels with alloy content ? 10% and a hardness of < 45HRC) - Possible use

M - Stainless steel(corrosion resistant steels with ? 11% chromium content) - Primary use

K - Cast Iron(castings of iron and carbon alloys with > 2% carbon content) - Possible use

N - Non-ferrous metals(metals including alloys without an appreciable amount of iron) - Possible use

S - High-temperature alloys(superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel) - Primary use

For additional details please check the Manufacturer's site:

A1081.6
